BA SON CORPORATION
With more than 500 technological equipment, 03 floating ramps, 01 lifting platform, 01 floating crane, 05 tugboats, towing to ensure effective service for the production of the Corporation.
Ba Son Corporation with more than 160 years of experience in building and repairing watercraft, through the process of investment and continuous development over the years, the Corporation has achieved many outstanding achievements, always at the forefront in the field of repairing and building new ships, floating vehicles, economic products as well as defense products.
In order to achieve these achievements, besides a team of skilled employees, Ba Son Corporation always focuses on constantly investing in modernizing the existing equipment, machinery and technology to meet the needs of customers. meet all requirements and tasks, keep up with the general development trend of the times.
The equipment and technology of Ba Son Corporation are imported mainly from countries with advanced industries such as the US, UK, France, Italya, Germany, Japan, Sweden, Finland... CNC cutting; plasma cutting machine; corrugated iron processing line, ball shooting line, automatic paint spraying; pipe bending machine; section bending machine; 4-axis corrugated iron bending machine with thickness up to 100mm; system of towing cranes, forklifts with the largest maximum lifting capacity in the area, effectively serving shipbuilding as well as processing stand equipment, wind power pylons, and super-heavy structures.
Many other specialized equipments are also selected by the Corporation according to the most advanced technical criteria, the capacity is suitable for the technological line of the factory.
1. Launching capacity:

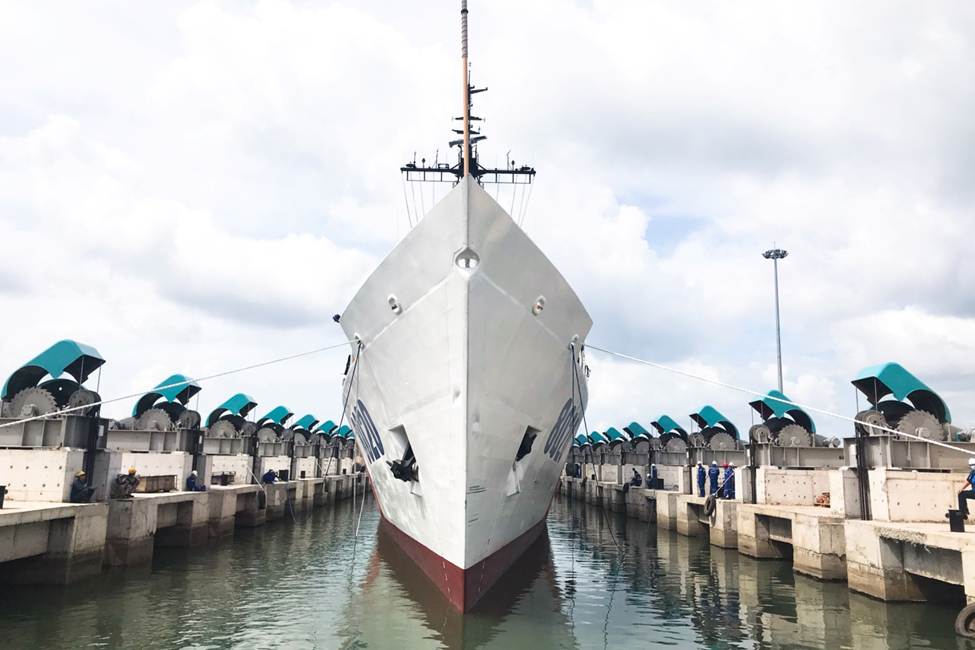

- Lifting floor 4500 tons
+ Maximum length: Lmax = 136m;
+ Maximum width: Bmax = 22m;
+ Depth: Hmax = 15m;
+ Lifting load: P = 4500T.
- Floating Dock 8850 tons
+ Maximum length: Lmax = 155m;
+ Maximum width: Bmax = 35.5m;
+ Height from platform: Hmax = 10m;
+ Maximum sinking depth: Tmax = 6.25m.
- Floating Dock 8850 tons
+ Maximum length: Lmax = 155m;
+ Maximum width: Bmax = 35.5m;
+ Height from platform: Hmax = 10m;
+ Maximum sinking depth: Tmax = 6.6m.
- Floating Dock 8850 tons
+ Maximum length: Lmax = 87.78m;
+ Maximum width: Bmax = 22.06m;
+ Height from platform: Hmax = 7.56m;
+ Maximum sinking depth: Tmax = 4m.
2. Lifting and hauling capacity:
- 60T floating crane: lifting capacity from 16 tons to 60 tons
- 06 Tugboats, pushboats with a total capacity of up to 7000CV
+ Tugboat 962: 1200 CV . capacity
+ 1200CV tug: capacity 2x1200CV
+ Pusher BS1, BS2: Capacity 2x630CV
+ Pushboat 1565, 1570: Capacity 500 CV

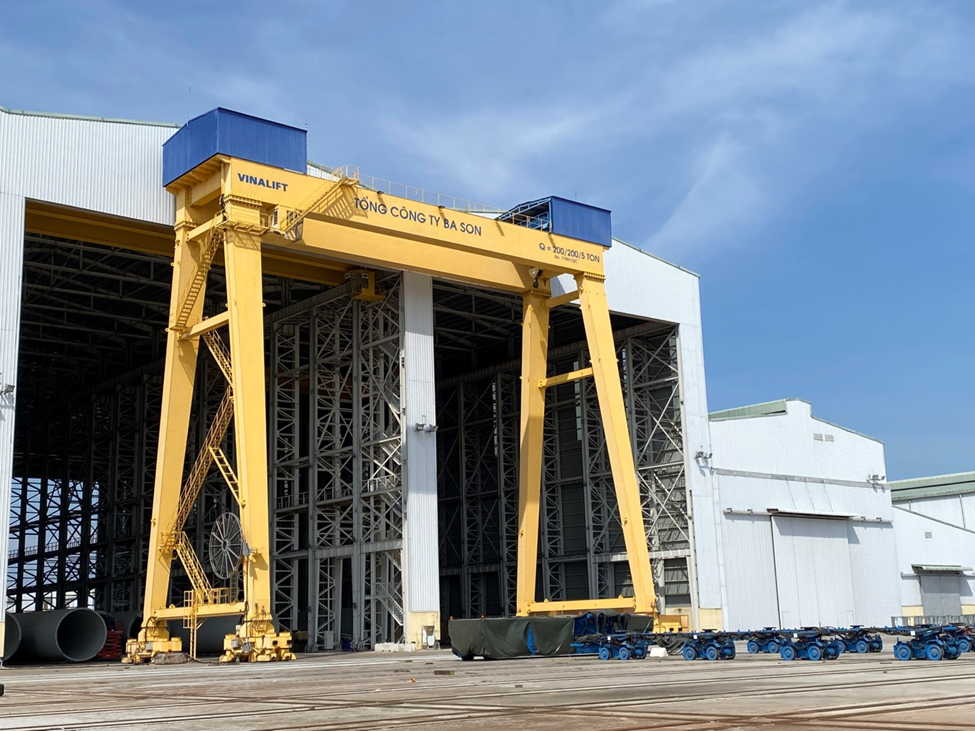

- Gantry crane CoK200T
- The system of forklifts, transport trucks, cranes up to hundreds of tons
- Factory crane system from 10 - 50 tons
3. Line, surface treatment system, spray paint:
-Corrugated iron processing line
+ Size of corrugated iron sheet up to: 2,500 x 12,000 x 35 (mm).
+ Processing capacity: 1000m2 /8h.

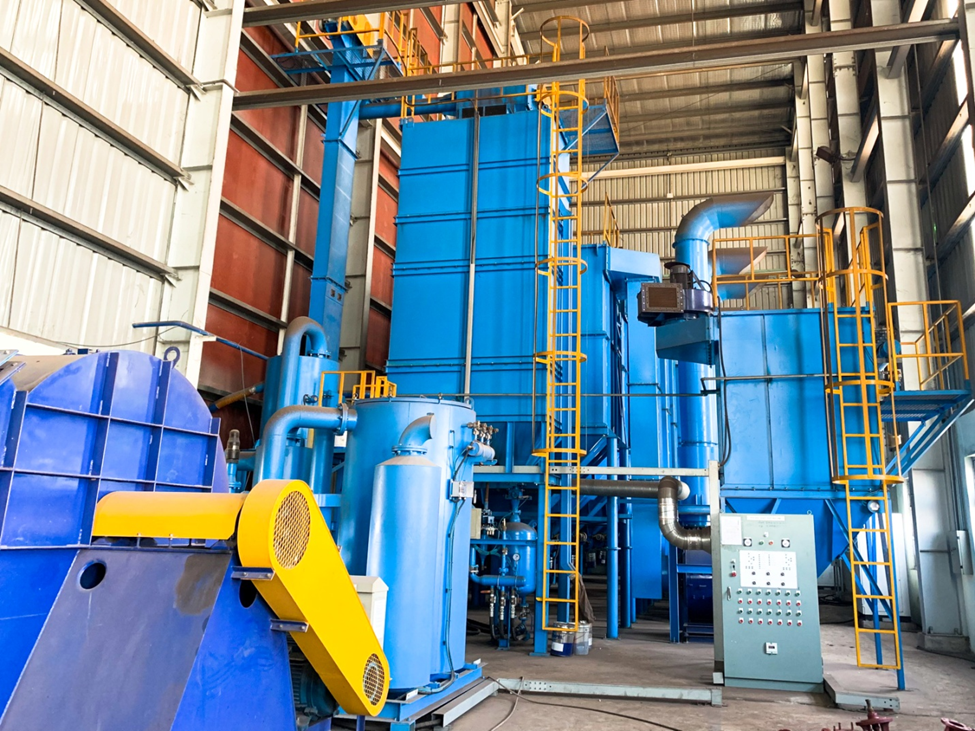

-Shindong surface treatment ball shooting line
+ Clean metal surface of sheet steel and section steel by - self-contained particle spray method;
+ Maximum processing size up to: 20,000 x 35,000 (mm).
+ Capacity: 1500m2 /8h (SA 2.0-2.5 standard)
- Shindong paint spraying system:
+ Spray capacity: 5200m2/8h (paint thickness 120 micrometers)
- Other mobile systems:
+ Shindong ball cleaning and recovery system.
+ Automatic self-contained movable ball recovery injection system.
+ Particle recovery and PS cleaning system.
4. Technological equipment for processing hull structure, super-heavy-weight structures:

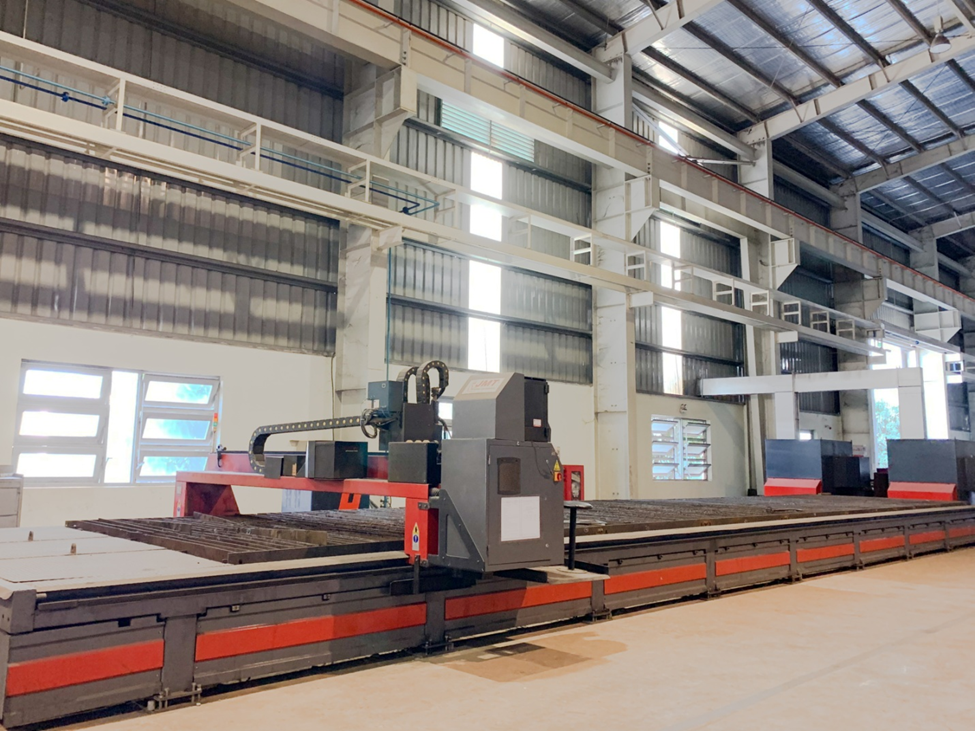

-04 CNC cutting machine (plasma, gas-oxygen)
+ Maximum size of corrugated iron: 2,500 x 12,000 (mm)
+ Maximum thickness of corrugated iron: 30mm (plasma), 100mm (gas-oxygen)
- Davi 4-axis corrugated iron bending machine
+ Bending corrugated iron with a thickness of up to 100mm
+ Diameter of bending pipe: Dmin = 1100mm, Dmax = 6000mm
-Faccin 4 axis corrugated iron bending machine (Italy)
+ Bending corrugated iron with a thickness of up to 85mm
Bending pipe diameter: Dmin= 900mm, Dmax=6000mm
- NIELAND SBP600 . hydraulic pressing machine
+ Maximum pressing force 600 tons
- AKOBEND hydraulic press machine:
+ Maximum corrugated iron: 3200mm
+ Maximum pressing force: 135 tons
- EKM 65x140 ton punching machine.
-Thin corrugated ironing machine
5. Technological equipment for mechanical processing and assembly:
- 15m long ribbon lathe: Turns parts with the largest diameter from 1.0 - 1.2m

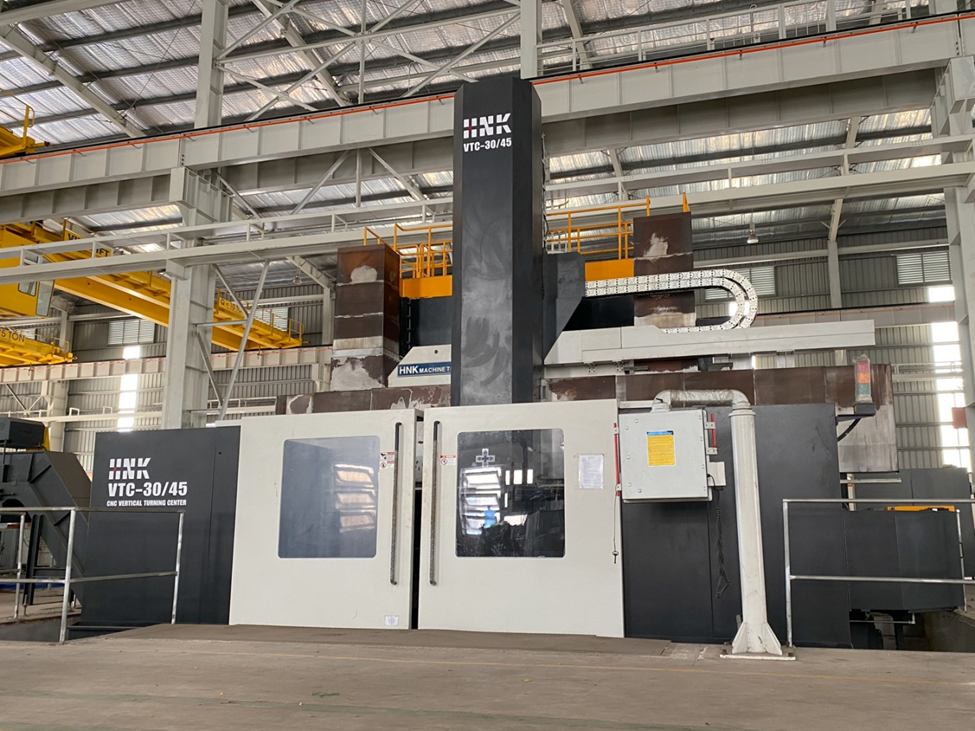

- Vertical axis lathe:
+ Maximum diameter: Dmax = 3500mm
+ Maximum turning height: Hmax = 1500mm
+ Maximum workpiece weight: 30 tons
+ Diameter of machine table: 3000m.

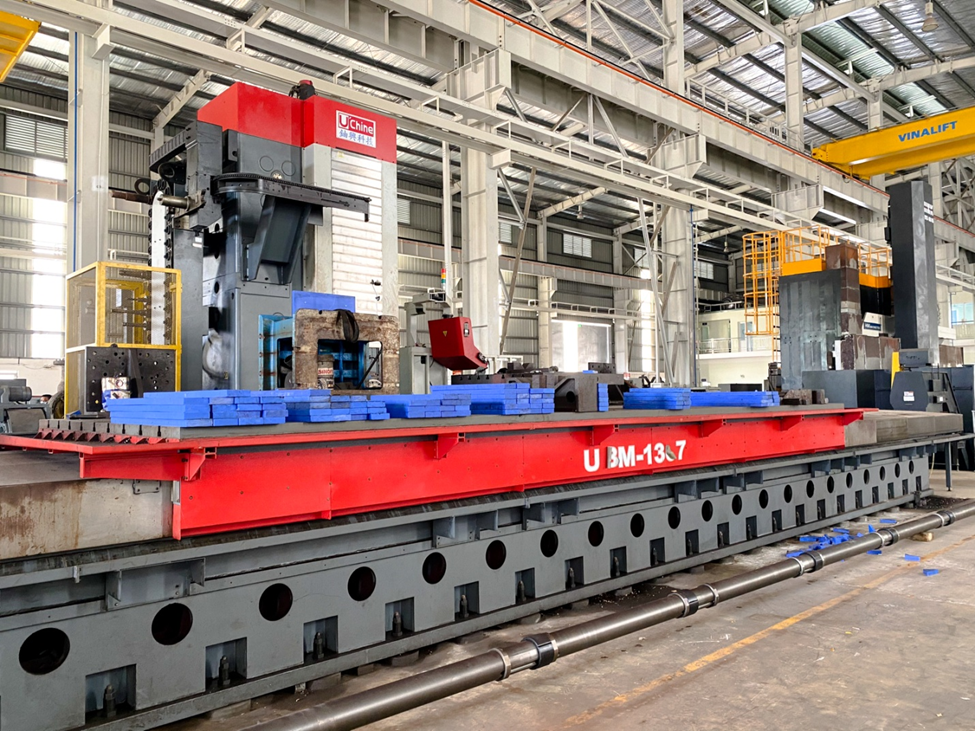

- Fixed horizontal boring machine
+ Maximum load: Pmax=50T
+ Speed: 10-2000 rpm
+ Working table size: 7000x2500mm
- CNC striping machine:
Table diameter: 650mm
+ Maximum stroke: 400mm
- Circular saw:
+ Ability to cut (left / right) at a 90 degree cutting angle.
+ Round billet: D400mm
+ Workpiece square: 460x460mm, rectangular: 400x460mm
+ Maximum saw blade speed: 90m/min
6. Equipment and technology for repairing diesel engines:
-Iop Marine mechanical injector tester
-Nantai electronic injector tester
-C&J . hydraulic press
-Nantai governor tester
7. Technological equipment to support technical design work:
The Corporation is applying software in the design and construction of new watercraft including:
+ Shipconstructor software in construction design, construction of 3D structures, programming drawings to cut machining details for CNC machines, ...
+ Currently, the Corporation has invested in 9 Shipconstructor software licenses with full feature modules:
a. Ship hull/structure modules:
- Hull (Hull)
- Structure
- Export 2D drawings (Marine Drafting)
- Weld Management (WeldManagement)
- Drafting of sheet steel (PlateNest)
- Drafting of steel profiles (ProfileNest)
- Export cut file (NC-Pyros)
b. System/device modules:
- Pipe (Pipe)
- Pipe support & Hanger
- Export drawing of pipe principle (PipeLink)
- Collision control (Penetration)
- Ventilation, air conditioning (HVAC)
- Electricity (Electrical)
- Equipment layout (Equipment)
c. Shared management modules:
- Project Management (Manager)
- Export data (Report)
The constant application of new technologies and updating of modern software helps the Corporation to design and construct many series of ships at the same time as well as support design consultancy for partners and customers. in the most convenient and effective way.
